LUSAS

CAPABILITY

Steel Composite Bridge Wizard

Rapid composite I-girder modelling

Use for quick and easy generation of the deck model geometry and corresponding mesh, geometric, material, support and local coordinate data for slab-on-beam composite I-girder bridges.

Find out more

Defining models

Define models that accommodate:

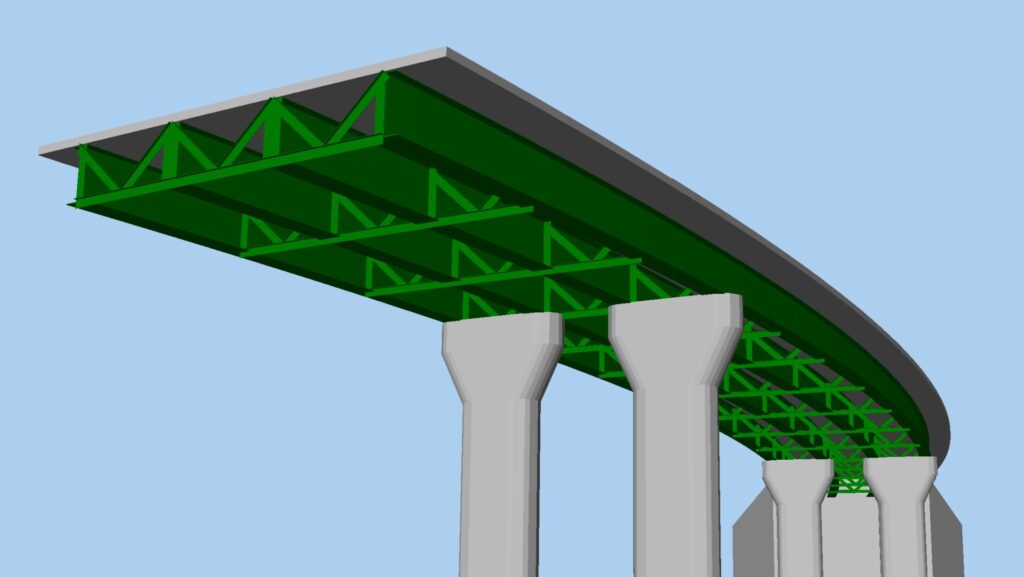

Straight or curved decks of constant radius.
An arbitrary skew, where a skew can additionally be set per support and interpolated across the spans.
Any number of spans and supports.
Square and skew bracing.
Transverse stiffeners.
Design utilities for design checking against supported design code

Find out more

Watch and learn

Watch the steps involved to carry out a design check of a composite girder member of a 3-span curved bridge deck in LUSAS to AASHTO LRFD 8th Edition. (Version 19.0)

Any structure. One solution.
